Vacuum dryer / drying chamber

ISVE ES 5

No. 3187

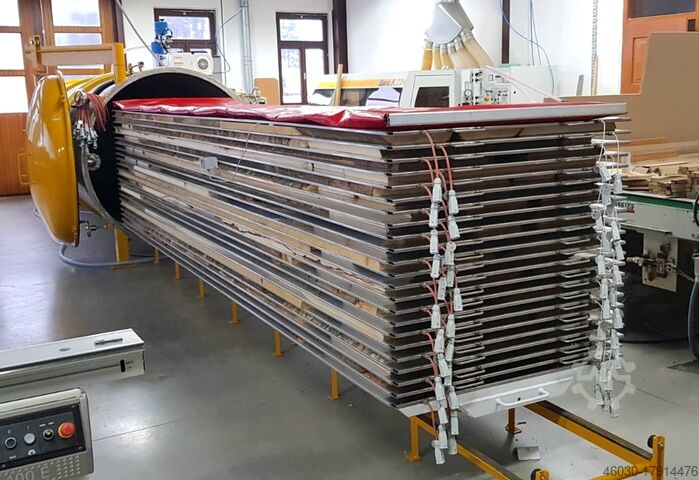

Vacuum dryer / drying chamber ISVE ES 5 / NEW

New machine, delivery time 120 days

Construction features: AISI-304 stainless steel, partially insulated
External diameter: 1600 mm
Length of cylindrical part: 5000 mm
Dryer length: 5900 mm
Dryer total length plus sliding guides: 11000 mm
Max. operating vacuum: -730 mm Hg

Timber pile length: 5000 mm
Timber pile width: 1100 mm
Timber pile height: 990 mm
Net wood volume: approx. 5 m3

Installed electrical power: 16,01 kW
Average hourly power input: 8 kW/h

Includes:

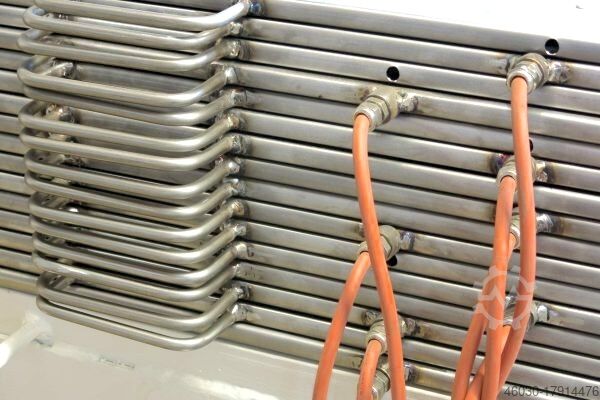

- 12 electric heating plates (each 1100 x 5000 x 10 mm LWH / 57 kg / 1,25 kW)
- 2 internal condensers (turbofan of 0,55 kW each 380 VCa with stainless steel pipes)
- 1 one-way valve (clapet: one ¾” for vacuum circuit)
- 1 solenoid air return valve (24 Vca: one 1” for the autoclave)
Bledpfx Asvc Axpobbop
- 1 manual air return (1” ball valve)
- 1 electrical control panel (PLC type Siemens S7-1200, with touch panel)
- 1 ISVE server connect with remote service and control
- 2 wireless moisture probes (double probes for core and surface moisture reading)
- 1 wireless temperature probe (for wood core reading)
- 2 plates-holder stands
- 1 instruction booklet (in English with CE certificate and wiring diagrams)

Transport dimensions approx. 5900 x 1620 x 2300 mm LWH
Weight approx. 2900 kg

Technical details, year of construction and scope of delivery according to the manufacturer, without guarantee
Subject to prior sale
New machines are covered by the manufacturer's warranty
Images and videos serve as examples and do not represent the actual scope of delivery

Terms of payment: Prices plus VAT, payment before collection or dispatch

Terms of delivery: ex location
